Pneumatic tools for crushing coal seam, concrete, road surface and roadway dressing by impact.
It can be used to cut off and break soft ore surface in mining. In the open pit mine for mining clay and soft rock; Used in civil engineering and subway construction to destroy solid or frozen strata and to dig holes, perforations and ditches.

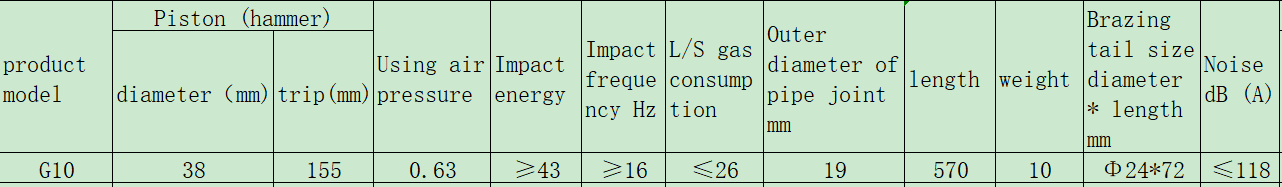

Product model :G10
Diameter (mm) :38
Travel (mm):155
Air pressure Mpa:0.63
Impact energy J:≥43
Impact frequency Hz:≥16
Air consumption L/S:≤26
Pipe joint outer diameter mm:19
Total length mm:570
Weight kg:10
Drill tail size diameter * Length mm:Φ24*72
Noise dB (A) :≤118
● Functional uses
Pneumatic tools for crushing coal seam, concrete, road surface and roadway dressing by impact. It can be used to cut off and break soft ore surface in mining. In the open pit mine for mining clay and soft rock; Used in civil engineering and subway construction to destroy solid or frozen strata and to dig holes, perforations and ditches.
